Confined Space Oxygen Levels: Safe Ranges, Testing and UAE Entry Rules

Why Oxygen Comes First in Every Gas Test

A confined space kills quietly. Vessels, pits, tanks and chambers that have been closed for days consume oxygen through rust, residue, bacterial action and damp absorption — a steel tank that has stood empty through a humid UAE summer can register under 15% oxygen without any visible warning. Because oxygen deficiency affects judgement before it affects mobility, a worker who feels slightly light-headed at the bottom of a manhole has already lost the ability to self-rescue. That is why the oxygen reading is the first number on every entry permit, and why entry is refused on a failed O2 reading even when every other gas is clear.

The other side of the range is less famous but more violent. Oxygen above 23.5% turns ordinary clothing and oil films into accelerants: materials that merely smoulder in air burn fiercely in enriched oxygen. This matters around welding operations, oxygen-leaking equipment, and spaces where pure oxygen has been used for purging or cutting.

The Full Test Sequence Before Anyone Enters

Oxygen is tested first, but it is never tested alone. Confined space atmospheres are checked in a fixed order because each gas changes how you interpret the next: oxygen first, then flammables, then toxics. The sequence our gas testers apply on UAE permits matches the standard used by ADNOC and municipal clients.

• Zero and fresh-air calibrate the meter in clean air; verify with a bump test gas if the meter is due
• Test oxygen — 19.5% to 23.5% acceptable; anything else stops the process here
• Test flammables as % LEL — accept only below 5% for hot work, 10% for cold work; both readings below 10% alarm
• Test hydrogen sulphide — action level 10 ppm time-weighted; IDLH begins at 100 ppm
• Test carbon monoxide — action level 25 ppm TWA; IDLH at 1,200 ppm

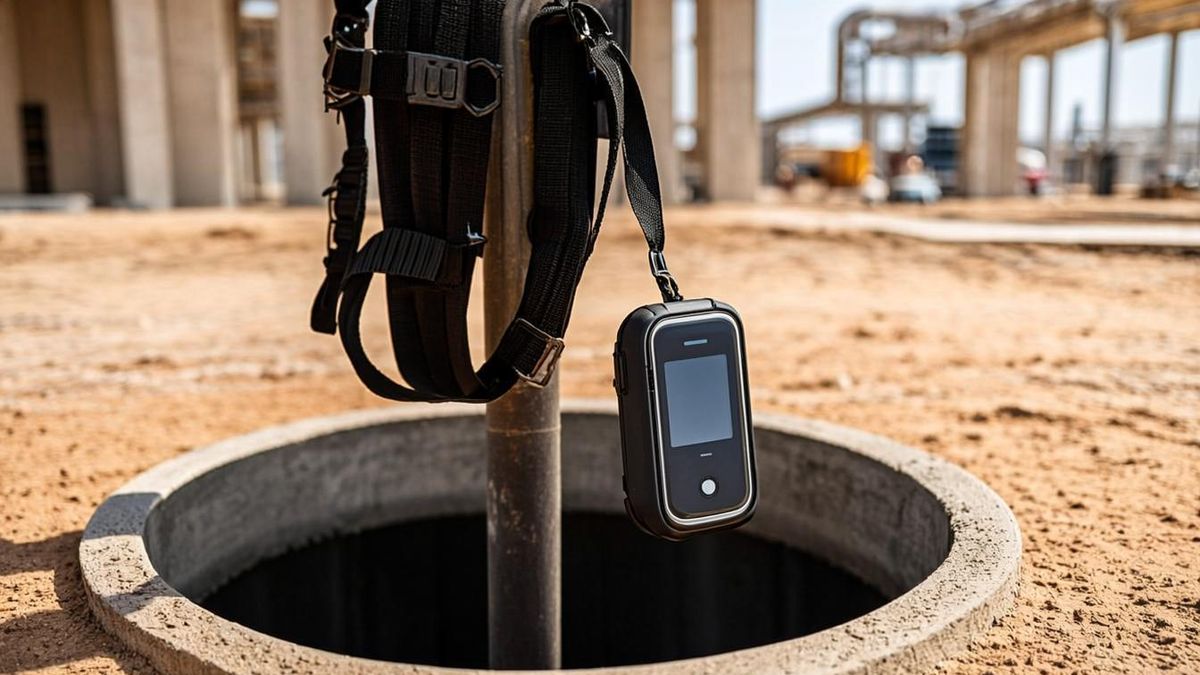

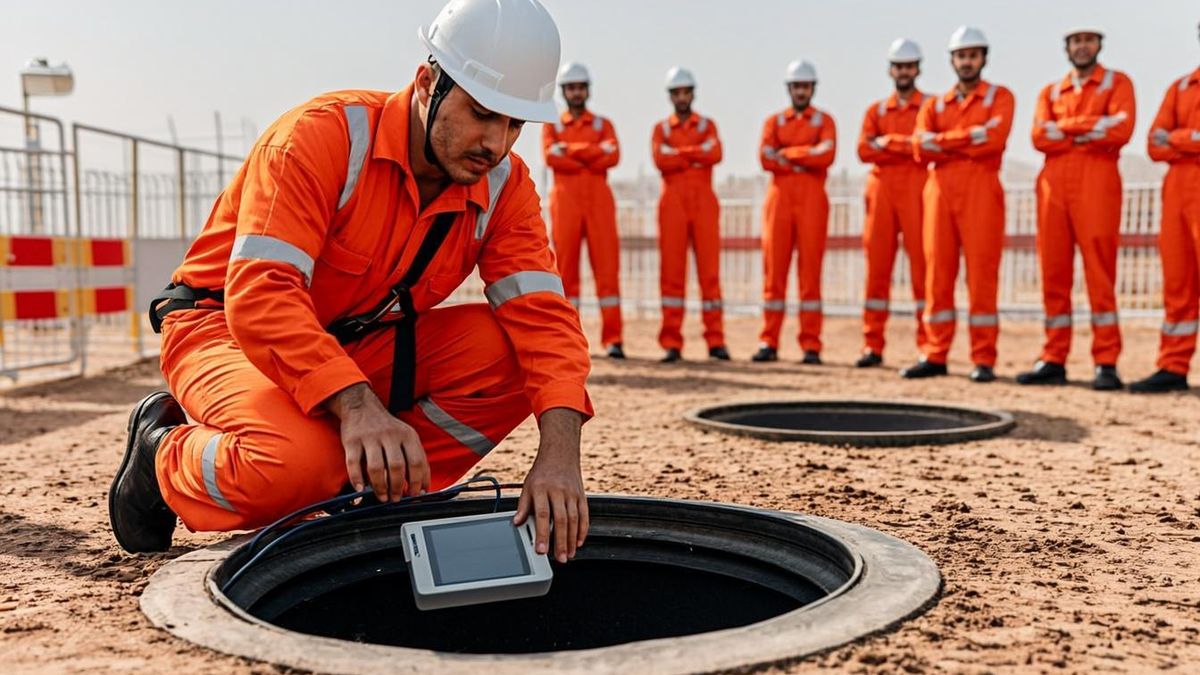

• Sample at three depths — gases stratify; test top, middle, and bottom of the space from outside
• Log every reading on the permit with time, depth and meter serial number

Continuous Monitoring During Occupancy

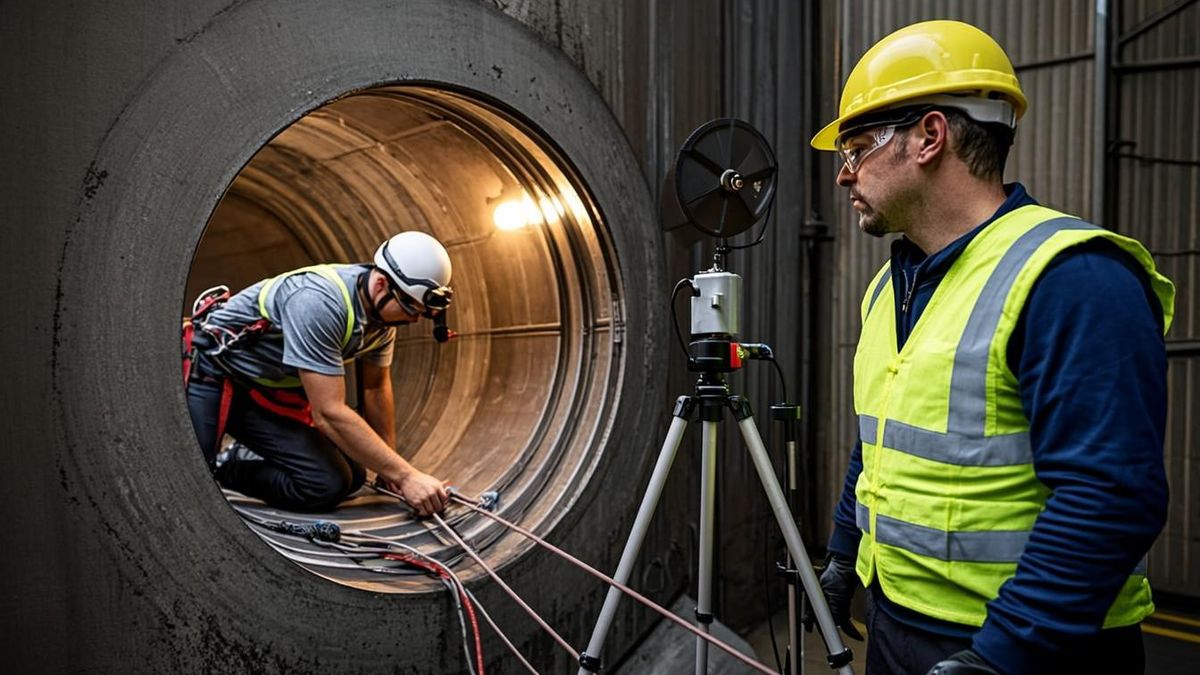

A pre-entry test certifies the atmosphere only at the moment it was taken. Spaces change: work inside generates fumes and consumes oxygen, disturbed sludge releases H2S, and wind shifts can push exhaust or heavier-than-air vapours into openings. UAE entry rules therefore treat monitoring as continuous — either a personal 4-gas monitor worn by each entrant, or a fixed aspirating sampler with its alarm visible at the attendant's station, and on many client sites both.

Alarm set-points follow the meter's standard configuration: oxygen low at 19.5%, oxygen high at 23.5%, LEL at 10% (with 5% for hot-work permits), H2S at 10 ppm and CO at 25 ppm. When any alarm sounds the space is evacuated first and investigated second — a rule that sounds obvious until the first time a crew tries to finish 'just one weld' with the LEL alarm chirping. Attendants exist to break exactly that instinct.

What Moves Oxygen Out of a Space

Deficiency rarely has a single obvious cause, which is why the investigation matters as much as the reading. In UAE practice the usual mechanisms are displacement, consumption and absorption. Nitrogen purging left in a vessel after testing displaces oxygen entirely — the classic cause of confined space fatalities on shutdown work. Rusting consumes oxygen; a sealed carbon-steel vessel can drop below 19% in months through corrosion alone. Wet organic matter — sludge, food waste, sewage — combines bacterial oxygen demand with absorption. And heavier-than-air gases such as argon from welding or CO2 from fire suppression settle into low points and push air out.

Meters, Calibration and Bump Tests

An oxygen sensor is a consumable electrochemical cell with a working life of roughly two to three years, and it drifts as it ages — which is why calibration is not paperwork but the thing that keeps the number honest. Meters used on UAE permits follow a simple discipline: a fresh-air zero at the start of each shift, a documented calibration on the manufacturer's interval (typically monthly for fixed units, per-manual for portables), and a bump test with known gas whenever the meter fails a fresh-air check, after any sensor change, or whenever the reading looks wrong for the space.

Sensor guards and water-trap filters matter in this climate: humid Gulf air with dust blocks aspirator lines and biases readings low. Field crews carry spare filters, and any meter that has been dropped gets a bump test before its next permit — a failed drop is the most common source of the 'meter said 20.9 but the space was 17' incidents that surface in incident investigations.

Entry Rules Beyond the Numbers

A passing gas test opens the door to entry but does not by itself justify it. The full UAE confined space regime stacks controls: isolation of lines and energy sources, attendant with rescue plan and non-entry retrieval equipment — tripod and winch for vertical entries — communication between entrant and attendant, and permits signed by a competent person. The person conducting the gas test must themselves be trained and authorised; on ADNOC sites that means an authorised gas tester qualification, and our guide to the authorised gas tester course covers what that certification involves.

For equipment selection, our multi gas detector guide explains how 4-gas monitors are configured and priced in the UAE, the LEL and UEL chart explains the flammability numbers behind the second test, and the confined space tripod guide covers the retrieval setup that every vertical entry needs. Oxygen is where the test starts — but the permit only closes when all of these pieces line up.
