Ledger Scaffolding: What It Carries, Standard Sizes and How It Is Built

What a Ledger Actually Does

In every scaffold there are two directions of steel: the standards that carry weight down to the ground, and the horizontals that make those standards act as one structure instead of a row of independent poles. The ledger is the primary horizontal along the scaffold's face. It connects standard to standard at each lift, it supports the transoms that deck the working platform, and it receives the façade braces that stop the frame racking. Remove one ledger from a loaded bay and you do not merely lose a component — you change how every connected member behaves under load.

The structural role explains the inspection attention ledgers get. A bent ledger changes the geometry of the bay it spans; a ledger fixed with the wrong coupler (a swivel where a right-angle double is specified) removes load capacity that the design assumed. On UAE sites, scaffolding inspectors checking a handover read the ledger lines first — spacing, coupler type, brace anchorage — because that is where erection errors concentrate.

Ledgers in Cuplock Versus Tube-and-Fitting

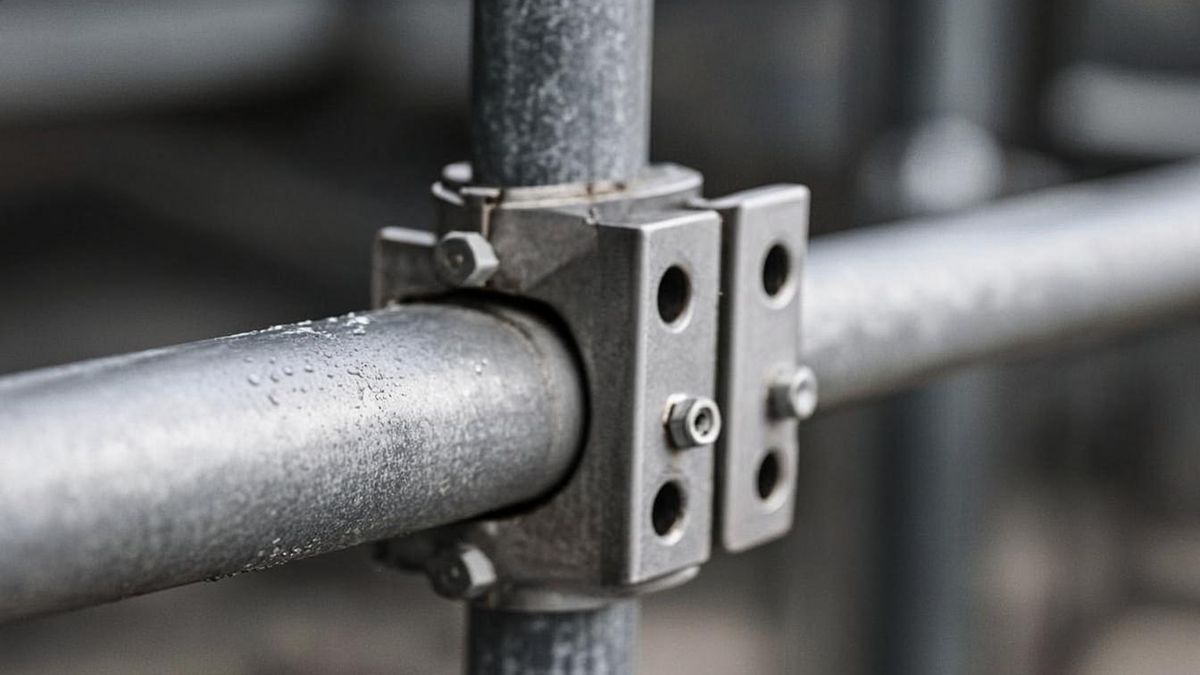

The UAE market runs on two systems, and the ledger behaves differently in each. In cuplock — the dominant system on local projects — the ledger ends are forged with blade plates that drop into the bottom cup of a standard and lock under the sliding top cup with a hammer blow. Node points occur every 500 mm up the standard, so lifts and ledger positions land on a fixed grid. In tube-and-fitting scaffolds, a ledger is plain 48.3 mm tube cut to length and connected with load-bearing right-angle (double) couplers, which means the erector controls geometry — and the errors.

The grid is cuplock's gift and its discipline. Because nodes sit at fixed 500 mm intervals, ledger positions are predictable and design checks are simple — but an erector cannot nudge a ledger a few centimetres to suit a doorway without leaving the grid, and off-grid improvisation is precisely what inspectors reject. Tube-and-fitting trades speed for freedom, which suits irregular industrial geometry, and it remains the default for scaffold-to-structure tie work and modifications around plant.

Standard Sizes and the Bay Grid

Ledgers come in a discrete set of lengths that define the bay widths of the scaffold. In the Gulf market the cuplock set runs on a roughly 300 mm module, and hire fleets stock the full range. Bay width is set by the ledger length between standards; the working platform then decks across transoms spanning perpendicular to the ledgers.

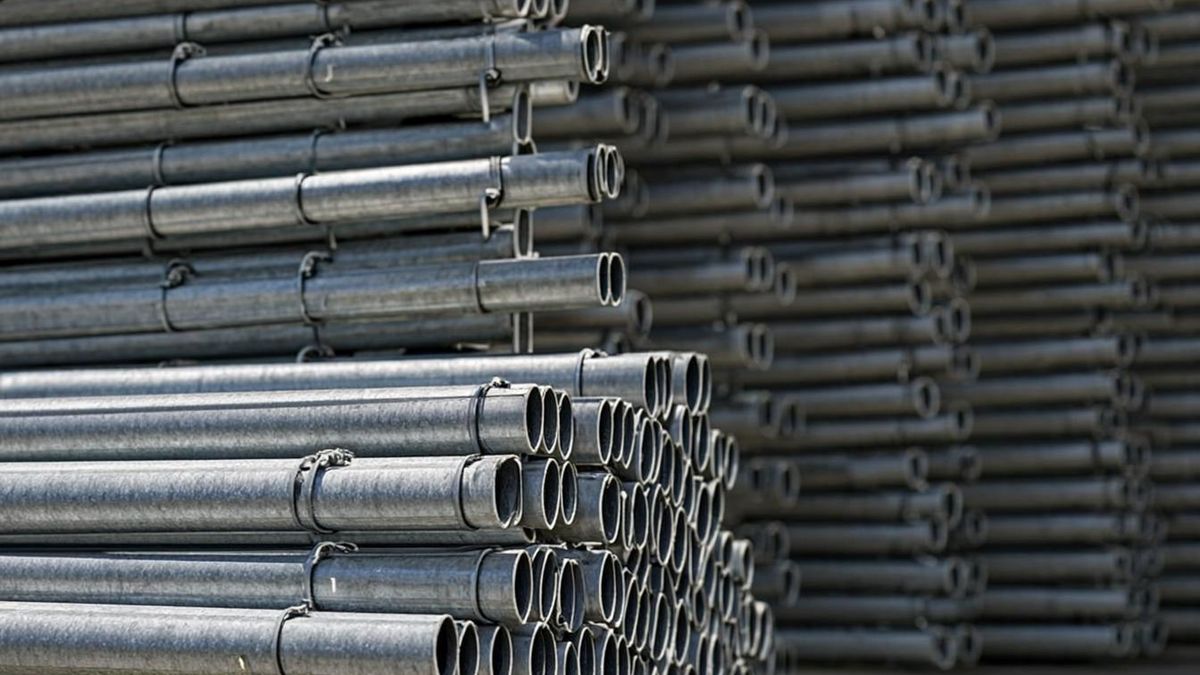

Two procurement notes from the local market. First, galvanised ledger stock commands a premium over painted but survives the coastal humidity of Dubai Marina and the Abu Dhabi Corniche far longer — most hire fleets are galvanised for exactly this reason. Second, blade-plate dimensions vary slightly between manufacturers, so mixing ledgers from different cuplock makers can produce cups that will not fully tighten; serious fleets keep manufacturer batches separate and colour-banded.

How Ledgers Carry Load

A ledger works mainly in bending and shear — the platform loads arrive through transoms, and the ledger delivers them to the standards at each node. Because the loads are point loads at joints, the ledger's effective capacity depends on the bay width it spans, the transom spacing on top of it, and the class of its connections. Longer ledgers spanning wide bays carry less per metre than short, stiff bays — which is why heavy-duty masonry scaffolds narrow the bays and densify the transoms rather than simply adding boards.

• Ledger spacing (lift height) — typically 2.0 m or less on working lifts in local practice; 2.5 m lifts appear on access-only towers
• Fac ledgers at working lifts carry transoms; non-working lifts may run single ledgers for stiffening
• Bracing — façade braces land on ledgers or standards near nodes, never mid-span on unsupported tube
• Plan bracing — short ledgers (0.73–1.07 m) brace the scaffold plan at the base and at set intervals on tall towers

Inspection Points and Discard Criteria

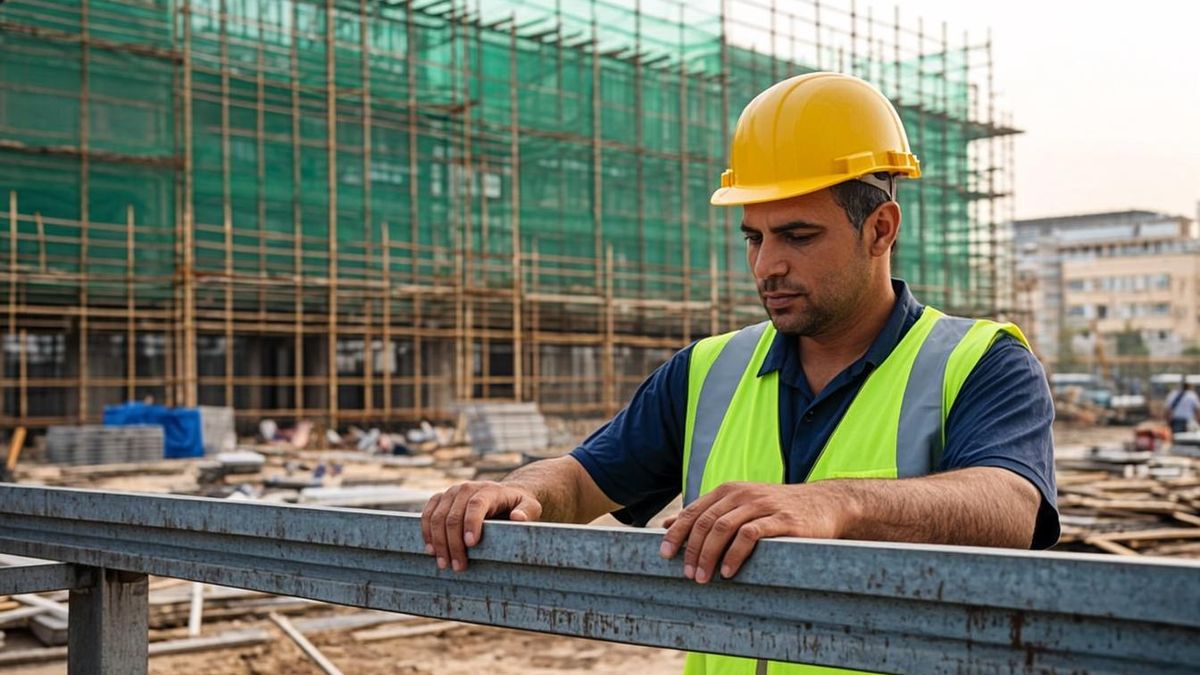

Ledgers ride the full scaffolding inspection cycle — after erection and before first use, at least every seven days in service, after modification and after weather events. Inspectors read ledger lines for the specific defects below, and any one of them pulls the component from service.

• Bend or bow — visible curvature along the tube rejects the ledger; kinks always reject
• Blade-plate damage — cracked, twisted or thinned blade ends (cuplock) cannot lock reliably
• Cup wear — top cups that will not tighten onto the blade under hammer blows
• Corrosion — surface rust is serviceable; section loss or pitting you can catch a fingernail in is not
• Weld cracks at blade-to-tube joints — hairlines grow under cyclic platform loads

Where Ledgers Fit the Component Family

The ledger is one member of a named family, and its job only makes sense beside its siblings: standards carry the loads down, transoms span across the bay under the boards, base jacks level and spread the loads at ground level, and couplers hold the tube-and-fitting world together. Our components naming guide walks the full list with photos and inspection notes, and the base jack and clamp pages cover the two components most often ordered alongside ledgers. For teams specifying whole systems rather than components, rental economics sit in our scaffolding rental guide — ledgers arrive inside system hires, priced per week with the swap-outs that keep fleets fresh.
