QUALITY INTL CERTIFICATIONSToe Board Scaffolding: Heights, Placement Rules and Compliance on UAE Sites
A toe board is the upstand fixed along the open edges of a working platform to stop tools, bolts and materials falling onto people below. On UAE projects toe boards are required on every working platform at height, commonly specified at 150 mm — comfortably above the 89 mm (3.5-inch) OSHA reference minimum — with gaps to the platform kept small enough that debris cannot pass.
What a Toe Board Is For
The guardrail stops the person; the toe board stops what the person is carrying. A spanner kicked at boot height on a tenth-floor platform leaves the edge faster than anyone can react, and at that drop height even a bolt arrives with lethal energy. Toe boards close the gap between the platform deck and the bottom of the guardrail system, turning the platform edge into a barrier for both feet and loose materials. That is why every scaffolding standard family — EN practice, OSHA, and the HSE specifications enforced across UAE projects — treats them as edge protection, not decoration.
On UAE sites the toe board also earns its keep against the environment. Gusty shamal winds lift sheets, offcuts and empty mortar bags off unprotected platforms, and falling-object incidents from height are among the most commonly recorded near-misses in construction HSE statistics. A competent person's pre-handover check therefore reads platform edges the way a pilot reads instruments: toe boards present, tight to the deck, fixed against displacement, no gaps at corners.
Heights, Gaps and Placement Rules
The numbers are simple and worth memorising, because inspectors do. International practice anchors on two figures: OSHA specifies toe boards at least 3.5 inches (89 mm) high; European-pattern practice and most UAE project specifications default to 150 mm. The clearance between the platform surface and the toe board's bottom edge must be minimal — the working figure on GCC specifications is a few millimetres, with 6 mm commonly cited as the maximum opening a toe board may leave, because that is the gap through which a washer or bolt can escape.
| Parameter | Rule | Source pattern |
|---|---|---|
| Minimum height | 89 mm (OSHA floor); 150 mm on most UAE specs | OSHA 1926 Subpart L / EN-pattern HSE plans |
| Clearance under board | Small as practicable; ~6 mm commonly cited maximum | EN-pattern and GCC project specs |
| Where required | All open sides/ends of working platforms at height | Universal across standards families |
| Fixing | Secured against displacement; no ride on boards they sit on | Site HSE plans and scaffolding codes |
| Corners and joints | Continuous — corner gaps defeat the purpose | Inspection guidance across regimes |
Placement follows one sentence: every open edge of every working platform gets a toe board, at every working level, from the first platform anyone works on to the top lift. The guardrail assembly and the toe board together make the edge protection set — mid-rail, top-rail, toe board — and handover certificates record the set as complete or not at all. Access platforms used only for passage still require edge protection in local practice, though the strict demands of a materials-loading bay add feeding-in allowances where boards are intentionally omitted under supervision.
Materials and the UAE Market

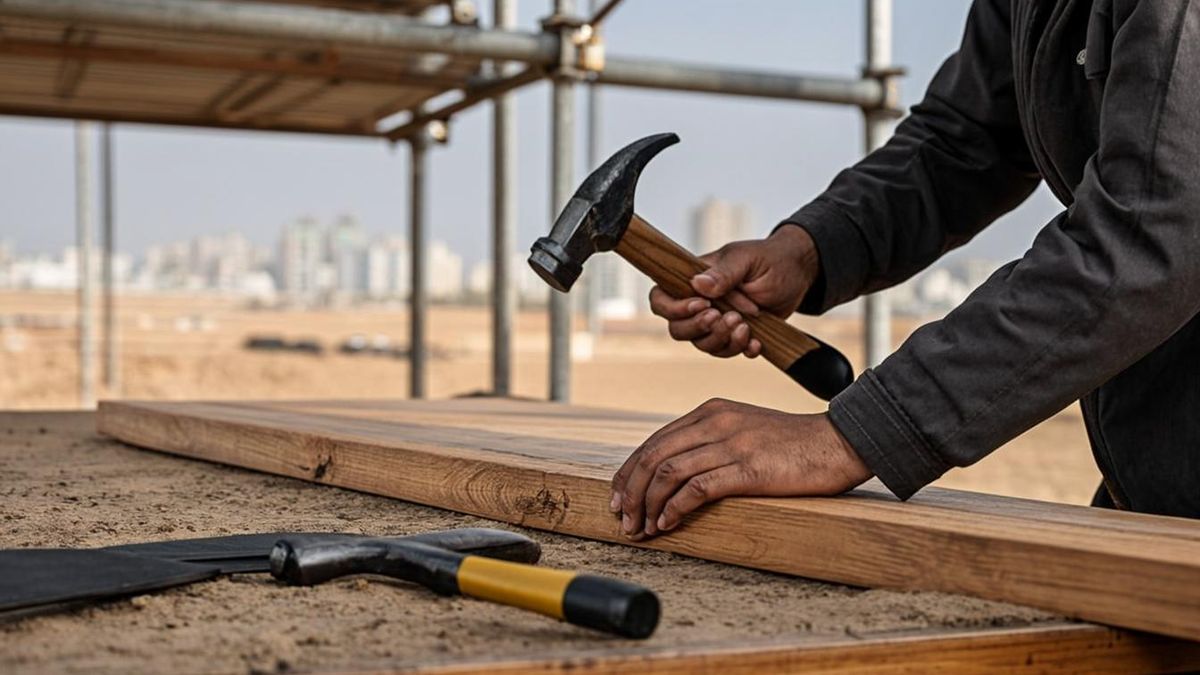

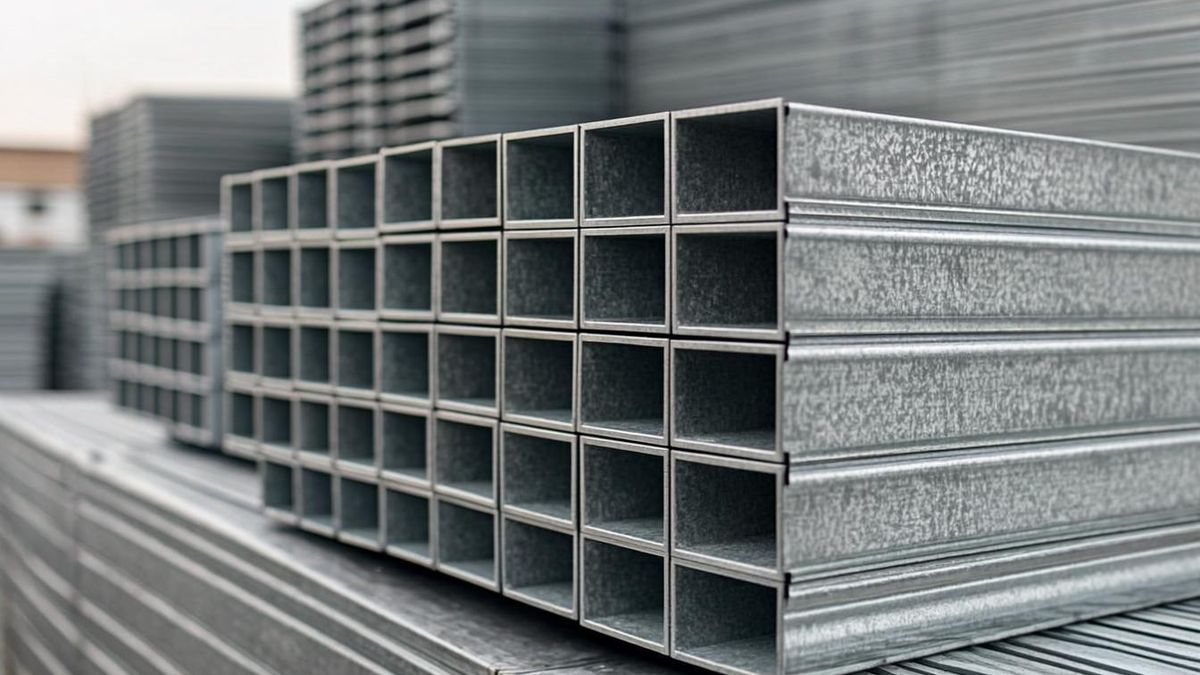

Two materials dominate: timber and steel. Timber toe boards — typically 150 × 25 mm or 150 × 32 mm treated boards — remain common on tube-and-fitting sites because any carpenter can cut and fix them, and damaged sections swap in minutes. Steel toe boards, formed to clip or bolt to system-scaffold ledgers and transoms, win on hire fleets and system scaffolds: they do not warp in the sun, do not walk off site as firewood, and survive re-erection cycles that chew timber. For cuplock and ringlock programs, the formed-steel board is the default the market quotes.
- Timber 150 × 25 mm treated board — the cheap, cuttable default; inspect for splits and end rot
- Timber 150 × 32 mm — stiffer, longer service life on multi-project sites
- Formed steel toe boards — clip-to-system profiles, galvanised; standard on hire fleets
- Mesh or perforated steel — used where drainage or visibility is specified
- Plywood offcuts — rejected on serious sites: unspec'd thickness, unverifiable treatment
Pricing in 2026 is a rounding error next to the risk: timber toe board sections run a few dirhams per metre, and formed steel boards land in the AED 15–40 range per 2–3 m length depending on profile and finish, inside a market where certified double couplers alone trade at AED 6–14. Most procurement errors here are not price errors — they are spec errors: unspec'd plywood substituting for treated 150 mm board, or steel profiles that fit one system being forced onto another with improvised fixings.
How Toe Boards Fail Inspections
Handover and weekly inspections find the same handful of defects. Toe boards absent on the far side of the platform where the scaffold stands against structure — crews assume the wall protects the edge, and inspectors reject the assumption because scaffolds move and get re-positioned. Boards fixed loose, resting on the deck they are meant to guard, so a kicked tool simply slides under or lifts the board on its way out. Gaps at inside corners where two boards meet without a cut. And heights eroded by wear — a timber board split down its height is half the barrier it was specified to be.
- Missing on 'protected' edges — against-structure sides still need boards once platforms are working decks
- Loose or unfastened — the board must resist a deliberate kick without displacing
- Oversized gap beneath — anything a bolt can pass through fails the intent
- Corner discontinuity — joints must close the run, not just meet it approximately
- Degraded section — splits, rot or deformed profiles that reduce effective height

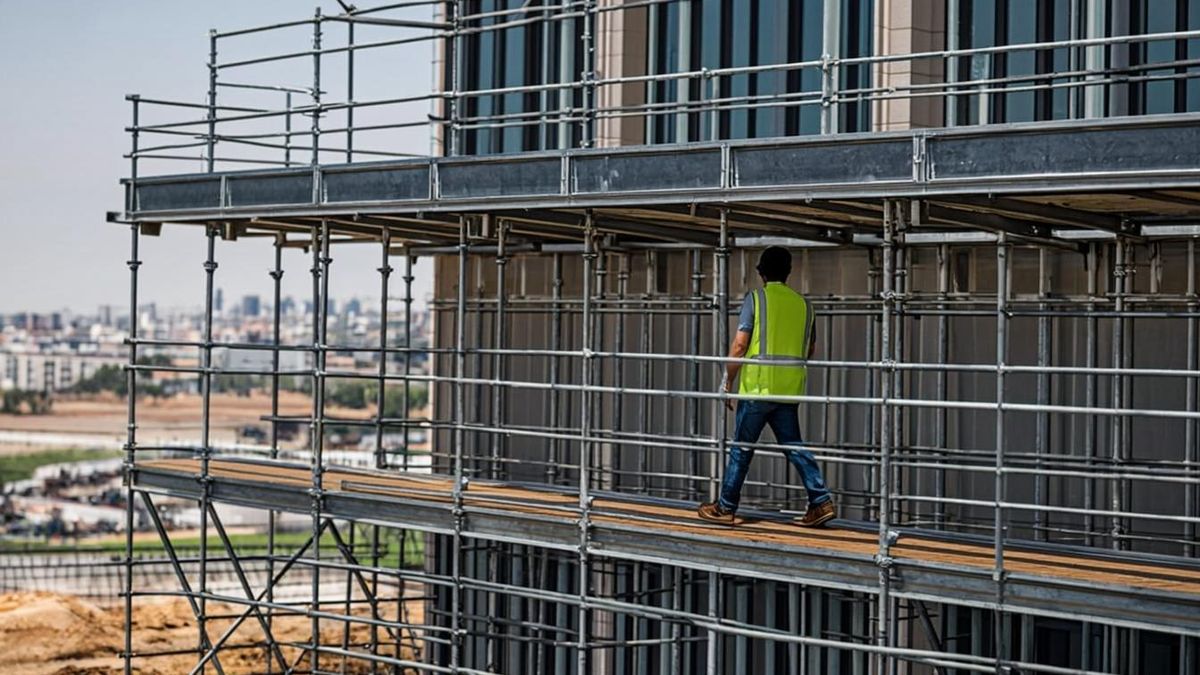

Toe Boards in the Edge-Protection Set
Toe boards work as part of a system that includes guardrails, mid-rails and, on mobile towers, wheel-locked stability — and the whole set lives inside the scaffolding inspection regime that governs every UAE structure: post-erection handover, weekly inspections, post-modification and post-weather checks, each recorded against the scaffold tag. Our scaffolding inspection requirements guide covers the full checklist inspectors run, and the mobile scaffold page addresses the tower-specific edge rules. For erecting teams, the practical sequencing note is simple: boards go on before the platform is declared a working platform — not after the first crew walks out with tools.
Frequently Asked Questions
What is a toe board on scaffolding?
A toe board is a low barrier — commonly 150 mm on UAE specs — fixed along the open edges of a working platform to prevent tools, materials and debris falling onto people below.
What is the minimum height of a toe board?
OSHA specifies at least 3.5 inches (89 mm); European-pattern practice and most UAE project specifications require 150 mm. Site HSE plans state the governing figure — check yours before ordering stock.
When is a toe board required?
On every open side and end of every working platform at height, at all working levels, as part of the guardrail edge-protection set. Platforms used only for passage still need edge protection in local practice.
What can I use for scaffold toe boards?
Treated timber (150 × 25 or 150 × 32 mm) or formed steel profiles matching your scaffold system. Plywood offcuts are not compliant substitutes — thickness and treatment are unverifiable.
How big can the gap under a toe board be?
As small as practicable — commonly cited at around 6 mm maximum, the size at which small hardware can no longer escape the platform. Larger gaps fail inspection even with the correct board height.
