Confined Space Tripod: Setup, Standards and Rescue Use in the UAE (2026)

What a Confined Space Tripod Actually Is

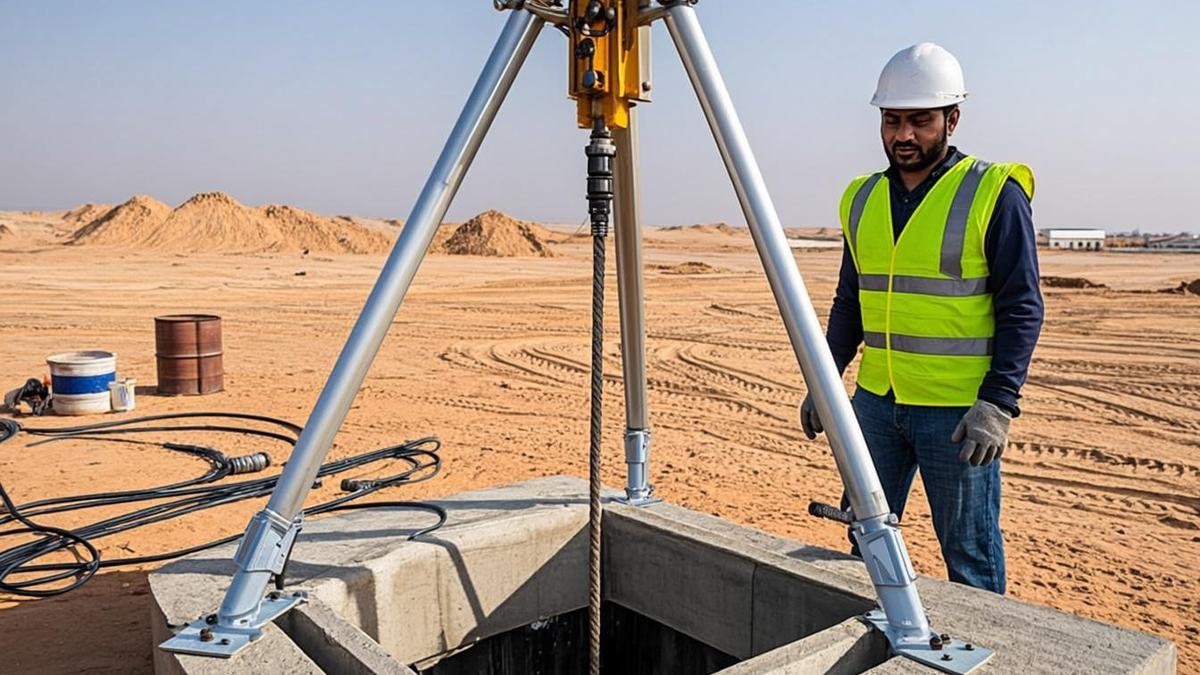

A confined space tripod is a freestanding, three-legged anchorage frame placed directly over a vertical entry point such as a manhole, sewer access, tank hatch or pit. Its job is simple but life-critical: it gives workers a rated anchor point above the opening so they can be lowered, held, and pulled back up under control. Without it, a vertical confined space entry depends on someone physically hauling a colleague out by rope — which almost never works when the casualty is unconscious. Before any retrieval setup is rigged, the atmosphere must pass the limits in our confined space oxygen level guide. Whether a space counts as Amber or Red changes the rescue plan — the zone rules are in our H2S zone classification ADNOC guide.

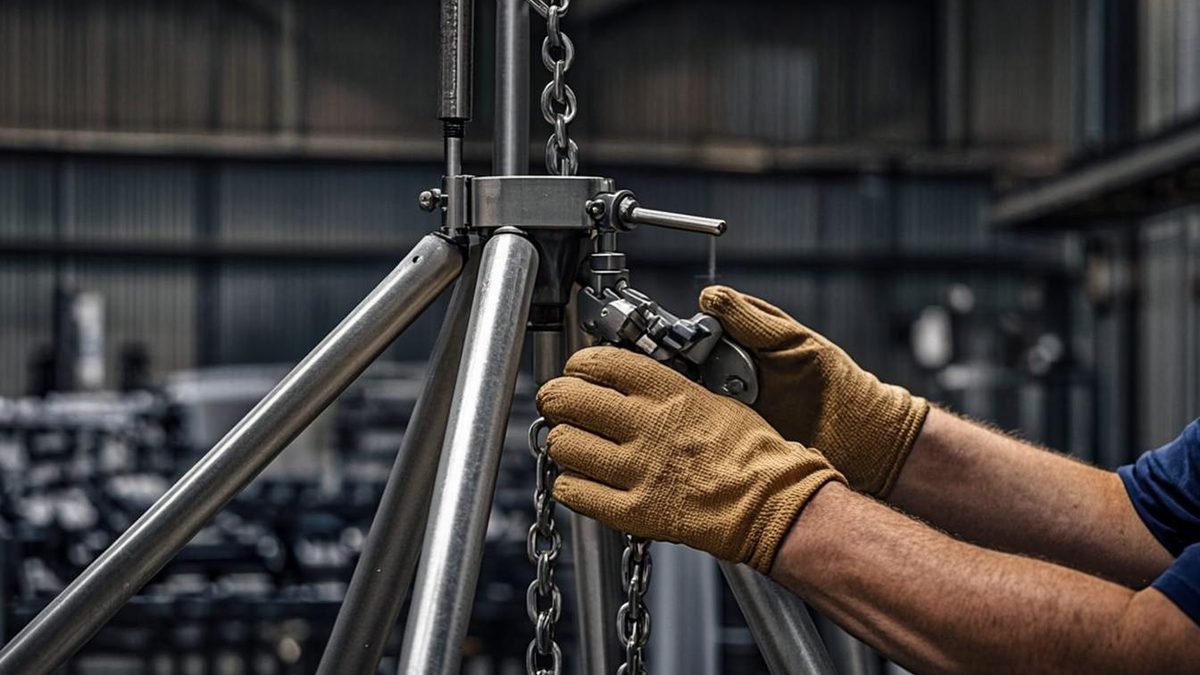

The three legs are hinged at a central head assembly, which usually carries at least two eyebolts or pulley positions. One position takes a retrieval winch (a man-rated winch with a crank and self-locking drum), the other takes a fall-arrest block (a self-retracting lifeline that locks within centimetres of a fall). Used together, the winch controls descent and ascent while the fall-arrest device protects the entrant if the winch line, anchor or footing fails. Most tripods used in the Gulf are aluminium because crews carry them between chambers, but galvanised steel versions survive rougher industrial handling.

Legs telescope in fixed increments and end in flat or spiked feet. Spiked feet grip earth and concrete with texture; flat rubber-soled feet suit coated floors and finished plant areas. A chain or bracing system between the legs stops them splaying under load — an unbraced tripod is not a rated tripod, no matter what the label says.

Why UAE Regulators and Clients Expect One

Confined spaces kill more people through rescue attempts than through the original incident — a statistic repeated across OSHA, UK HSE and Gulf incident databases. The rescuer enters to help a collapsed colleague, breathes the same oxygen-deficient or toxic atmosphere, and becomes the second casualty. The entire engineering logic of a tripod is to make non-entry rescue the default: the entrant stays connected to a line from the moment they leave the surface to the moment they return. Continuous atmospheric monitoring belongs to the instrument — see our multi gas detector guide for the UAE.

In the UAE, OSHAD-SF requirements for Abu Dhabi and Dubai Municipality's local orders both treat confined space entry as a permit-controlled, high-risk activity. In practice, energy-sector clients go further: ADNOC-group onshore and offshore sites require retrieval systems for vertical entries, and auditors routinely stop the job when a tripod is missing, unbraced, or set up off-centre from the opening. If you work in oil and gas, water infrastructure, telecoms ducting or municipal maintenance anywhere in the Emirates, assume the tripod is mandatory equipment, not optional.

Standards and Ratings You Should Check Before Buying

Three families of standards govern tripod systems. Anchorage strength comes from EN 795:2012 Type B (temporary anchorage devices) and ANSI/ASSP Z359.18 in North American practice — both effectively demand 12 kN minimum for a single-person anchor with a fall-arrest use. The winch and SRL must be man-rated: a material-handling hoist with a hook is not a rescue device. Look for EN 1496 (rescue lifting devices) or ANSI Z359.4 classification, and a working load limit stated for personnel.

Load rating needs honest arithmetic. Add the entrant's body weight, their tools, and any expected rescue load, then compare against the system's rated capacity. Most quality tripods handle one person comfortably; two-person rescue hauling needs a mechanical advantage pulley system rather than brute force, and the training to use it.

Step-by-Step Safe Setup

Setting a tripod is a five-minute task done badly and a two-minute task done well. Crews trained in confined space entry follow this sequence:

1. Position for the opening: centre the head assembly directly over the manhole or hatch, not beside it. An off-centre line drags the entrant against the opening edge and multiplies side-load on the legs.
2. Spread and brace the legs: open each leg to the same index hole, fit the bracing chain at working height, and confirm the frame stands level. Uneven legs concentrate the load on one foot.
3. Check the footing: flat feet on finished floors, spikes on rough ground, and never bridge soft backfill or grating that could shift under shock load.
4. Hang the devices: winch on the primary eye with its leg-directly-under alignment, fall-arrest block on the second eye. Spin each drum out and back once to feel for smooth retraction.
5. Connect the entrant correctly: winch line to the front D-ring for controlled descent, SRL hook to the dorsal or front point per the manufacturer's configuration, and a gas monitor clipped where it will travel with the entrant's breathing zone.
6. Function-test before entry: lock the winch and pull hard on each line, confirm the SRL arrests with a sharp tug, and rehearse the retrieval motion with the standby team.

The attendant stays at the surface for the entire entry — monitoring readings, holding the communications line, and keeping both hands available for the winch. That role discipline is drilled properly in a dedicated confined space rescue course, which UAE operators increasingly require alongside basic entry training.

The Rescue Scenario: What Actually Happens

When the entrant stops responding, the sequence that saves lives runs in this order: attendant calls it in on the radio, refuses to enter, and starts retrieval. The winch crank brings the entrant up under control while the SRL pays out and re-locks. At the surface, the team moves the casualty onto a spine board, and only a trained rescue team performs any further entry. Documents from OSHA fatality investigations repeatedly show that fatalities climb when this sequence is improvised instead of rehearsed.

Where the space is tight, the casualty gets wedged, or the geometry is not vertical, teams switch to a davit arm or a trained rescue service. That honest limitation is why competent UAE employers run quarterly rescue drills with the actual tripod they own, in the actual chambers their crews enter — a plan on paper is worth nothing at 2 a.m. in a sewer beneath Sheikh Zayed Road.

Inspection, Colour Coding and Records

Tripods fall under the same periodic inspection discipline as other lifting and fall-protection equipment. UAE sites generally apply this rhythm: a pre-use check by the user (legs, chain, eyes, function test), a detailed inspection every 6 months by a competent person with recorded findings, and an immediate quarantine tag after any shock load or visible damage. Many contractors integrate the tripod into their wider lifting equipment inspection and third-party inspection programme, using the same register and colour-coding discipline as slings and hoists.

Records matter because they are the first thing an auditor asks for after an incident: serial numbers, last inspection date, inspector identity, and the defect history of each component. A tripod with no paper trail is treated as unverified equipment regardless of its condition.

Buying in the UAE: Prices and What to Insist On

UAE safety suppliers sell tripod systems across a wide quality range. Realistic 2026 market pricing: a basic aluminium tripod alone runs AED 3,000-5,500; kits with man-rated winch and fall-arrest block run AED 6,500-12,000; premium systems with davit conversion and certified manhole guard accessories exceed AED 15,000. Rental is widely available at roughly AED 150-350 per day for short shutdown jobs.

Insist on three things from any supplier: the standard certificates for each component (not a generic system sheet), a stated load rating for personnel, and spare-parts availability for the winch. Suppliers who cannot produce component certificates are reselling unverified stock, and that paper gap becomes your legal problem the day it is used in anger. Pair the purchase with gas detection — a tripod without an atmospheric monitor protects against falling, not against the hydrogen sulphide or oxygen deficiency that caused most confined space deaths in the region; our gas detector buying guide for the UAE covers that side of the entry kit.

Training: The Part That Makes the Equipment Work

The tripod is the visible 10 percent of a confined space programme. Around it sit the entry permit, atmospheric testing discipline, isolation and venting, attendant duties, and rescue capability — each one a trained skill. UAE incident history mirrors international data: the equipment usually exists; the training to use it under stress is what was missing. A combined entry and rescue programme, refreshed annually, with drills in real chambers, is the standard that serious operators hold. For teams that already hold basic entry certification, a rescue-module upgrade plus quarterly tripod drills closes most of the practical gap at modest cost.

If your team is building confined space capability from scratch, sequence it deliberately: entry training first, equipment familiarisation second, rescue drills third, then a documented permit system that ties all three together. Skipping straight to equipment purchase without the training layer is the most common and most expensive mistake we see on UAE sites.
