QUALITY INTL CERTIFICATIONSBase Jack Scaffolding in the UAE: Types, Sizes, Load Ratings and Prices
A base jack is the adjustable threaded foot at the bottom of every scaffold standard: it levels the tower, spreads the load onto a sole board, and lets crews compensate for uneven ground. In the UAE, typical base jacks use a 30–38 mm stem with 300–600 mm of thread, and site rules generally limit exposed thread to about 300 mm unless the design says otherwise.
What a Base Jack Actually Does

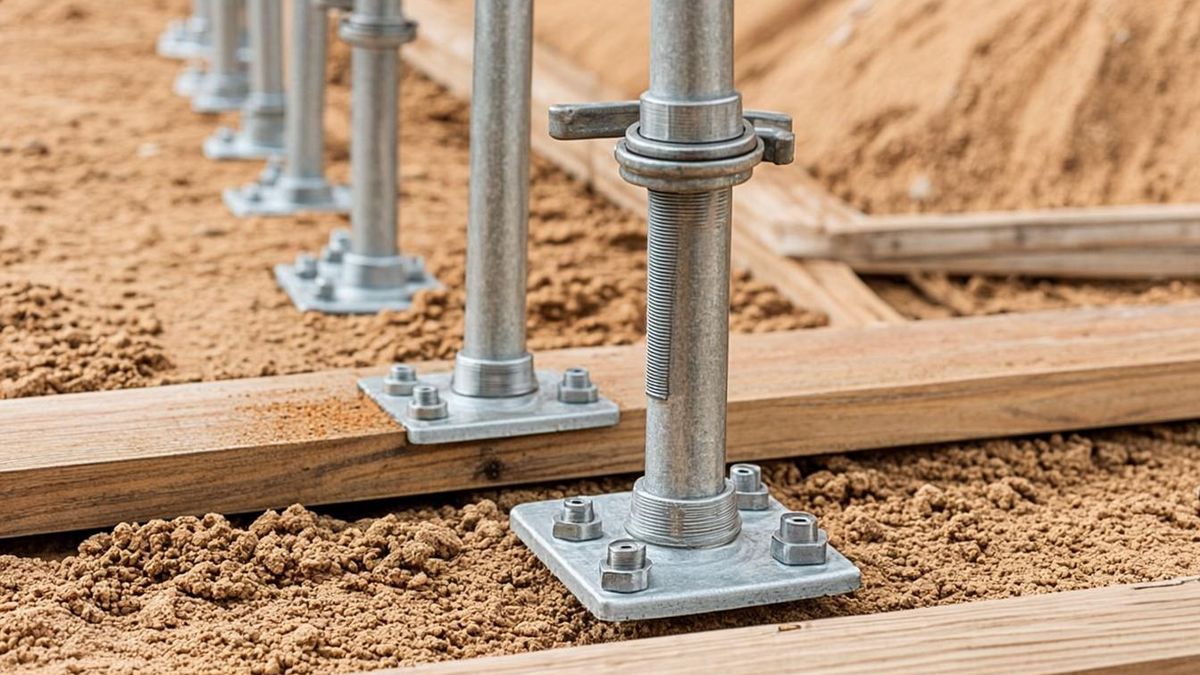

Every scaffold starts at the ground, and in the UAE that ground is rarely perfect — sandy pads, sloped slabs, backfill beside new foundations. The base jack is the component that absorbs all of that inconsistency. It is a steel screw jack consisting of a threaded stem, a welded base plate, and a handle nut. Screwing the nut moves the stem up or down so each standard can be set to exactly the right height before the first lift is built. The horizontals those standards carry are covered in our ledger scaffolding guide — sizes, load role and inspection points. Platform edge protection at the top of the stack is detailed in our toe board scaffolding guide.
The base plate matters as much as the thread. On concrete, a 150 × 150 mm plate distributes the leg load without punching into the surface. On soil, the jack must sit on a timber sole board — typically 38 mm thick scaffold board or 50 × 225 mm timber — so the bearing area grows and the leg does not settle mid-shift. Skip the sole board on soft ground and the whole tower can rack out of plumb within days.
Solid Stem, Hollow Stem and Swivel Base Jacks
Contractors in the Emirates order three families of base jack, and choosing the wrong one shows up immediately in the load calculation. The table below compares what you will actually be quoted by suppliers in Dubai and Sharjah.
| Jack type | Stem | Typical length | Best use | Approx. price (2026) |
|---|---|---|---|---|
| Solid stem base jack | 30–38 mm solid bar | 300–600 mm | Heavy-duty system scaffolds, high towers | AED 22–35 each |
| Hollow stem base jack | 36–48 mm tube | 400–800 mm | Ringlock/cuplock systems, weight-sensitive loads | AED 18–28 each |
| Swivel base jack | Solid, pivoting plate | 300–600 mm | Slopes, ramps, irregular slabs up to ~15° | AED 30–45 each |
| Fixed flat plate jack | 30 mm solid bar | 200–400 mm | Birdcage and indoor scaffolds on level slabs | AED 15–22 each |

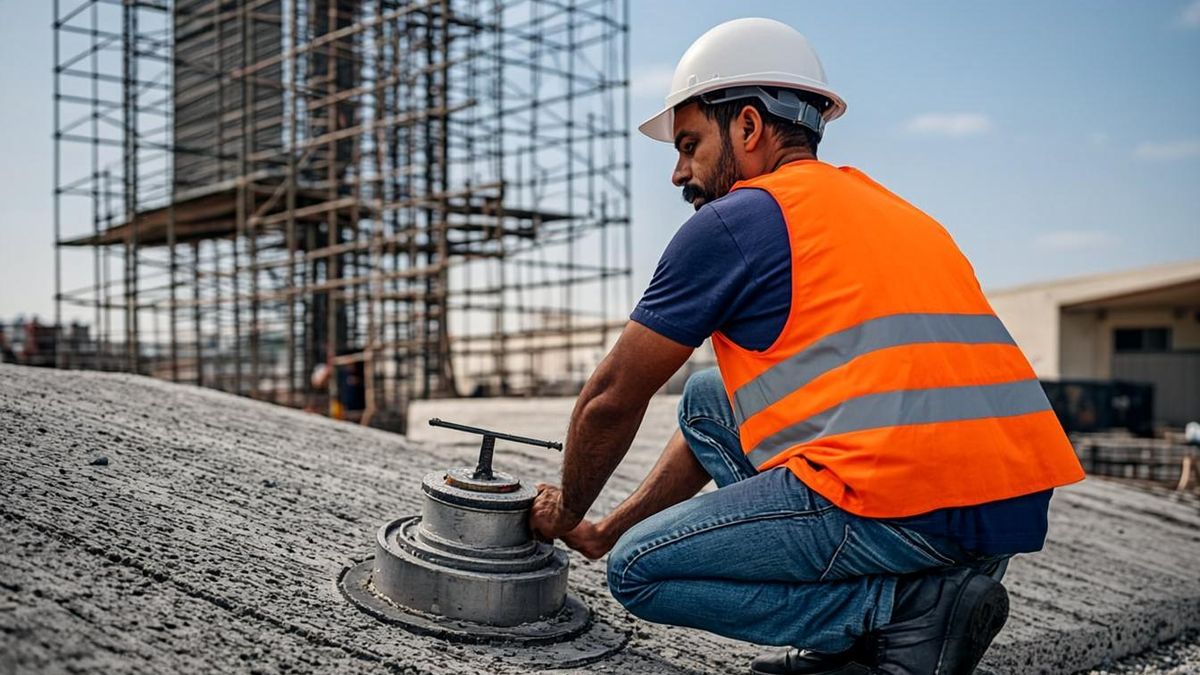

Solid stems take more compression and survive rough handling on multi-project hire fleets. Hollow stems save roughly a third of the weight — relevant when a facade job on Sheikh Zayed Road means loading a thousand jacks into a hoist. Swivel jacks are the answer for the sloped podium decks and ramp edges common in Dubai Marina basements, but their pivot pin becomes an inspection point that inspectors always check first.
Sizes and Load Ratings You Will Be Quoted
UAE suppliers overwhelmingly stock jacks to match the two dominant system scaffolds in the region: cuplock (48.3 mm tube) and ringlock (48.3 mm with rosettes). Load capacity is not a single number — it depends on the exposed thread length, because a screw extended to its last turns behaves like a long, slender column that can buckle.
- 300 mm jack, 100 mm extension, 38 mm solid stem — safe working load around 35–40 kN per leg
- 600 mm jack, 300 mm extension, 36 mm hollow stem — derate to roughly 20–25 kN per leg
- 600 mm jack fully extended near its limit — capacity falls steeply; most UAE inspection regimes flag anything beyond two-thirds travel
- Swivel jacks — plan on 15–20 percent less capacity than the equivalent fixed jack
The practical rule most UAE scaffolding supervisors apply: keep the exposed thread at or below 300 mm. When more adjustment is genuinely needed, the correct fix is a shorter standard on top of a less-extended jack, not a jack screwed out to its last threads. Scaffolding design drawings approved for Abu Dhabi and Dubai projects almost always state this limit explicitly.

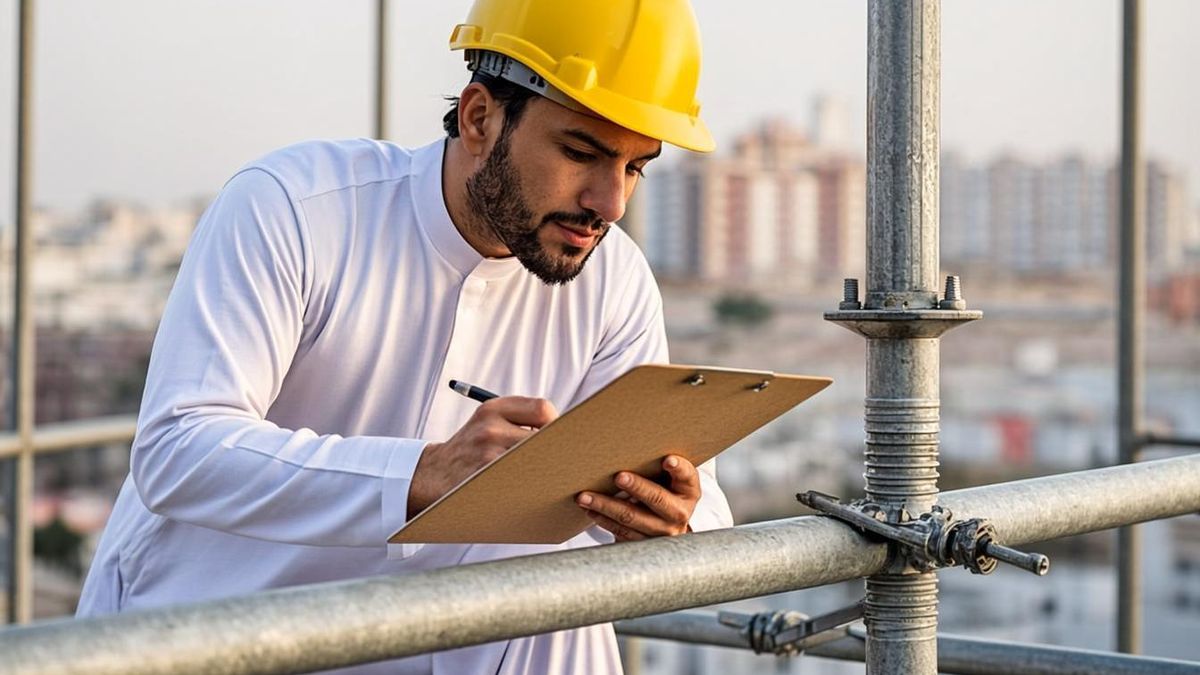

Inspection and Discard Criteria
Base jacks are consumables that live a hard life: they get dropped from towers, driven over by telehandlers, and left in desert sand between projects. A discarded-looking jack is the most common reason a scaffold handover certificate gets delayed. Before each erection, check every jack against this list.
- Bent stem — roll it on a flat slab; visible wobble or a bow over 5 mm rejects the jack
- Damaged threads — the handle nut must run the full thread by hand; forced threads mean re-cut or scrap
- Cracked or torn base plate — inspect the weld on all four sides; hairline cracks grow under cyclic load
- Handle nut play — a nut that flops on the stem has stripped its seating
- Corrosion — surface rust is cleanable; pitting that you can catch a fingernail in is a rejection
Hiring vs Buying Base Jacks in the UAE
For most contractors the decision comes down to fleet utilisation. A rental house in Dubai Investment Park will quote base jacks as part of a full cuplock or ringlock package rather than separately, and the effective rate lands near AED 0.50–1.00 per jack per week inside a system hire. Buying makes sense once a jack fleet would sit working more than roughly eight months a year.
| Option | Cost basis | Includes | Watch out for |
|---|---|---|---|
| Hire with system scaffold | AED 0.50–1.00/jack/week | Swap-outs for damaged jacks | Return condition charges for bent stems |
| Buy new (China import) | AED 18–35/jack | Galvanised or painted finish | Lead time 3–6 weeks; verify mill certificates |
| Buy used from UAE yard | AED 8–15/jack | Immediate availability | Inspect threads yourself; many are end-of-life |
| Swivel jacks (buy) | AED 30–45/jack | Pivot pin assembly | Grease pins or they seize in sand |
How Base Jacks Fit the Wider Scaffold System
The jack is only the first component in a chain that decides whether a scaffold stays plumb and loaded as designed. Above it sit the standards, ledgers, transoms and bracing — each with its own inspection regime — and the entire assembly is certified under UAE colour-coding and tagging rules before workers step on it. If you are specifying a full system, our guides to scaffolding parts and terminology, clamp types, and the practicalities of renting scaffolding in the UAE cover the rest of the stack in the same level of detail.
Frequently Misread Rules, Corrected
Three questions come up on almost every UAE site we audit. First, jacks do not need to be perfectly level with each other — they need the standards they support to be plumb, which is not the same thing on a sloping slab. Second, locking nuts must be wound down against the base plate so vibration cannot let the adjustment creep; a jack held only by friction is a failed jack. Third, mobile scaffolds use castors, not base jacks — if a tower needs to roll, it needs the wheel assemblies rated for that frame, never a jack with the plate removed.
Frequently Asked Questions
What is a base jack in scaffolding?
A base jack is the adjustable screw foot at the bottom of a scaffold standard. Its threaded stem, handle nut and base plate let crews level the scaffold on uneven ground and spread the leg load onto a sole board or slab.
What is the maximum extension for a scaffold base jack?
Most UAE site rules and system-scaffold designs limit exposed thread to about 300 mm. Beyond roughly two-thirds of the jack's travel, load capacity drops sharply because the stem behaves like a slender column.
What size base jack do I need?
Match the jack to your system tube: 48.3 mm cuplock or ringlock standards take 30–38 mm stems. Choose 300–600 mm lengths for typical slabs and soil, and swivel jacks where the ground slopes more than a few degrees.
Do base jacks need sole boards?
On soil, sand or backfill, yes — a 38 mm sole board under the base plate stops the leg settling and keeps the tower plumb. On sound level concrete the base plate alone is usually acceptable.
How much do scaffolding base jacks cost in the UAE?
New solid-stem jacks run about AED 22–35 each, hollow stems AED 18–28, and swivel jacks AED 30–45. Inside a full system hire they are effectively AED 0.50–1.00 per jack per week.
