Scaffolding Parts Name List: Every Component Explained (2026 Reference)

Why Every Safety Professional Needs This Vocabulary

On a working construction site, scaffolding vocabulary is the difference between precise instruction and dangerous guesswork. An inspector who says "the transom at gridline C is disconnected" is actionable; "one of the horizontal bits is loose" is not. Supervisors, erectors, inspectors and even procurement staff are expected to name components correctly in reports, permits and incident investigations, and every international scaffold training scheme — including the inspector and supervisor certifications common in the UAE — tests this vocabulary in its first module. The adjustable foot gets a full treatment in our base jack scaffolding guide — types, sizes, load ratings and UAE prices. Safe access rules for each component setup are covered in our scaffolding ladder guide for the UAE. The ledger's structural role and standard lengths get a full page in our ledger scaffolding guide. The toe board's rules — 150 mm on UAE specs — are covered in our toe board scaffolding guide.

This reference lists the parts in the order a scaffold is actually built, from the ground up, because that is the order in which load path and safety logic make sense. Terminology follows the European tube-and-fitting system specified in BS EN 12810 and BS EN 12811, the framework that dominates UAE project specifications, with the common site-language aliases noted where they differ.

Foundation Parts: What the Scaffold Stands On

Sole boards are the timber or composite planks laid on the ground first, spreading the entire scaffold's load across more soil or slab area than the tubes alone would cover. On soil, a standard sole board is a 38mm-thick timber plank sized to support at least two standards. Skip them and the scaffold's legs punch into the ground the first time it rains or the soil is disturbed.

Base plates sit on the sole boards — steel squares with a central spigot or cup that receives the first vertical tube, keeping it fixed and upright, spreading point loads into the board. Adjustable base jacks (screw jacks) replace fixed base plates on anything but perfectly level surfaces: a threaded screw inside a nut lets the erector level the scaffold precisely on sloping ground, with the thread left visibly unextended beyond the safe limit marked on the jack.

Standards are the vertical tubes — the columns of the scaffold. Every load on the platform travels through the standards down to the sole boards, which is why bent, corroded or out-of-plumb standards are a dismantle-and-replace finding, never a bend-it-back finding. Standards are joined vertically with spigots (internal joint pins) or sleeve couplers, locked at each lift.

The Horizontal Frame: Ledgers, Transoms and Lifts

Ledgers are the horizontal tubes running along the face of the scaffold, connecting standards lengthwise. They carry the transoms and give the structure its longitudinal strength. Transoms are the horizontal tubes running across the scaffold's width, sitting on the ledgers, and they are the tubes that directly support the platform boards. Putlog transoms are the single-tube variant used where a scaffold has only one working row.

The vertical distance between ledger levels is a lift, and lift heights are set by the design — typically around 2 metres for access scaffolds. The gap between the working platform and the structure is managed with bridging transoms or hop-up brackets that extend the platform toward the wall face, eliminating the gap that tempts workers to overreach.

Platform Parts: Boards, Guardrails and Toe Boards

Platform boards (scaffold boards, decks) form the working floor — timber boards in the BS EN 12811 tradition or steel and aluminium decks on system scaffolds. Boards must be supported at the spacing their span rating assumes, secured against uplift and movement, and free of the splits, end damage and surface contamination that turn a platform into a trap. System decks use hook-on boards that lock into transoms directly.

Guardrails protect the open edges: a main guardrail at approximately 950mm-1,000mm, a mid-rail halfway, and often an additional lower rail, all rigid enough to withstand the leaning forces of real workers. Toe boards — the vertical boards at platform edge, at least 150mm high — stop tools, bolts and materials rolling off onto people below. Guardrails plus toe boards plus the boards themselves make a platform legally complete; remove one element and the platform must not be used.

Couplers: The Joints That Hold Everything Together

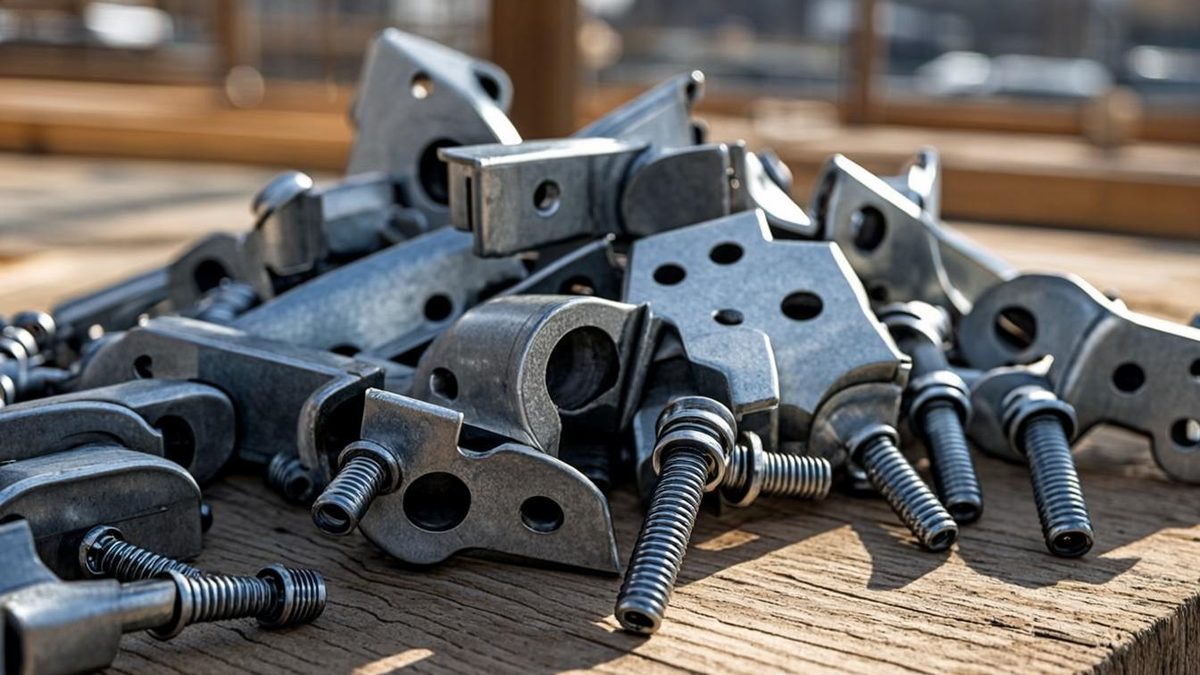

Tubes become a scaffold through couplers, and knowing them by name is core inspection knowledge:

Couplers must be the correct class for the load, complete with their bolts and nuts, torqued properly, and free of the cracked bodies and stripped threads that inspections exist to find. A scaffold is only as strong as its weakest fitting — a lesson repeated in every scaffold collapse investigation ever written.

Bracing and Ties: What Stops the Scaffold Falling Over

Ledger bracing (face bracing) runs diagonally along the scaffold face connecting ledger to standard in a zigzag pattern, resisting longitudinal sway. Facade bracing runs along the length of the scaffold across multiple bays. Plan bracing stiffens the scaffold horizontally at platform level. Together they convert a stack of rectangles into a rigid structure.

Ties connect the scaffold to the building it serves. Through-ties pass through window or door openings and clamp to tubes inside; box ties wrap around structural columns; reveal ties press between opposing walls with reveal couplers. Tie patterns are a design calculation, not an erector's judgment call, and missing or removed ties — typically knocked out by other trades and never reinstated — remain one of the most frequent critical findings in scaffold inspections, a theme developed in detail in our scaffolding inspection requirements guide for UAE sites.

Access and Protection Components

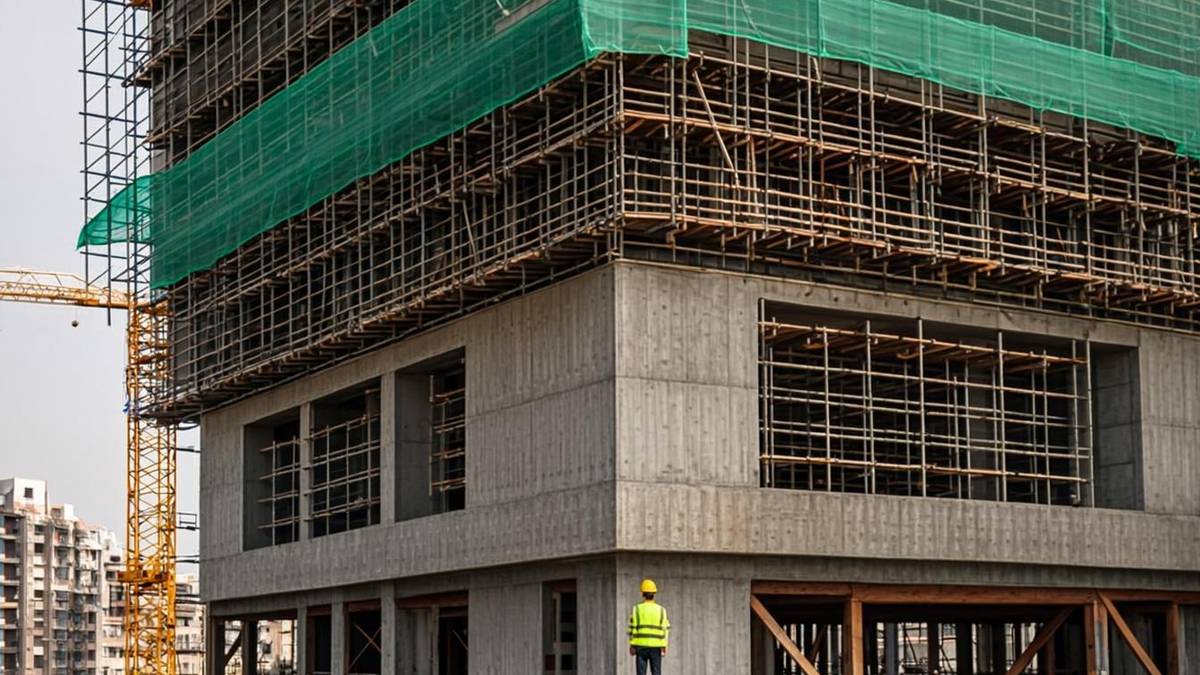

Ladder access — internal, protected ladders rising through hatch openings (trap doors) in the platform — is the default access method, with ladders extending about a metre above the landing point and secured against movement. Staircase units replace ladders on high-traffic or material-carrying scaffolds. Loading bays are reinforced platforms built to receive material lifts and hoists, marked with their rated load. Sheets and debris netting — the green mesh you see wrapped around towers in Dubai and Abu Dhabi — protect the public below and contain wind-blown debris, with wind loading then becoming a design consideration.

Scaffold tags complete the system: inspection tags clipped at every access point, colour-coded for inspection currency, stating the platform levels covered and the date and name of the last inspector. A tag is only a record — the inspection behind it is what the colour promises, which is why the competent-person scheme behind the tag matters, as covered in the scaffold inspector certification path.

System Scaffolds vs Tube-and-Fitting: Same Names, Different Hardware

Tube-and-fitting scaffolds — loose tubes joined by the couplers above — offer total flexibility and remain the default for complex industrial and access work. System scaffolds (cuplock, ringlock, frame systems) replace loose couplers with pre-welded node points: a standard drops into a rosette or cup, a ledger or transom clicks in, and a wedge or pin locks it. The parts vocabulary still applies — standards, ledgers, transoms, boards, guardrails, ties — but the connection hardware is built into the tubes.

UAE projects commonly run both: system scaffolds for repetitive facade and formwork access where speed wins, tube-and-fitting for the awkward geometry around plant, ductwork and heritage structures. Inspectors must read both fluently because the failure modes differ — wedge seating and node condition on systems; coupler class, bolt torque and tie pattern on tube-and-fitting.

Working Vocabulary Checklist for Site Use

• Load path, top to bottom: boards → transoms → ledgers → standards → base jacks → base plates → sole boards → ground
• Edge protection set: guardrail + mid-rail + toe board on every open edge
• Stability set: ledger bracing + facade bracing + plan bracing + ties to structure
• Access set: protected ladder through trap doors, extending 1m above landing
• Record set: scaffold tag at every access, current colour, named inspector

Learn the checklist and you can walk any scaffold, in any emirate, and describe what you see in the language that erection teams, inspection bodies and regulators all share. The vocabulary is also the foundation for supervising erection and dismantling safely — the subject of the scaffolding supervisor course pathway — and for the height-safety equipment that surrounds scaffold work, including the checks in our safety harness inspection guide.
